function AddNewMenuFrame(AComponent: TCLComponent; xName: string): TclMenuFrame;
AComponent : Specifies the parent of the object to be defined.
xName : The name of the defined component should be written.
"TclMenuFrame" is a component frame type in Clomosy. This frame can be used as a menu component and helps create menu options in the application.
| Feature | Use of | Definition |
|---|---|---|
| TClMenuFrame | MenuFrame1 : TClMenuFrame; | A variable belonging to the TclMenuFrame class is created. |
| AddNewMenuFrame | MenuFrame1 = Form1.AddNewMenuFrame(Form1,'MenuFrame1'); | A new Menu Frame is added to the form. |
| Align | MenuFrame1.Align = alContents; | Alignment adjustment is made. |
| MenuBar | MenuFrame1.MenuBar.Width = 250; MenuFrame1.MenuBar.Height = 250; | It defines the main menu of the application and provides users with access to application functions. With this, adjustments such as height and width can be made. |
| Visible | MenuFrame1.Visible = False; | Visibility settings can be adjusted. If it is true it is visible, if it is false it is not visible. |
| ClMenuPosition | MenuFrame1.ClMenuPosition = clLeft; | Menu Frame position is set.(Default => clRight) |
| VertScrollBox | MenuFrame1.VertScrollBox | The MenuFrame provides an area with a vertical scrollbar within. This allows objects placed inside it to be created and displayed vertically one below the other. |
Example
Var
MyForm : TclForm;
TstSideMenu : TClMenuFrame;
ShowBtn,menuBtn: TClProButton;
MenuItem1, MenuItem2: TClProButton;
void showMenuFrame;
{
TstSideMenu.Visible = True;
clRTMethod(TstSideMenu, 'BringTofront');
}
void showShowBtn;
{
TstSideMenu.Visible = False;
clRTMethod(menuBtn, 'BringTofront');
}
{
MyForm = TclForm.Create(Self);
TstSideMenu = MyForm.AddNewMenuFrame(MyForm,'TstSideMenu');
TstSideMenu.Align = alContents;
TstSideMenu.MenuBar.Width = 250;
TstSideMenu.Visible = False;
TstSideMenu.ClMenuPosition = clLeft;
menuBtn= MyForm.AddNewProButton(MyForm,'menuBtn','menu');
menuBtn.Align = AlLeft;
menuBtn.Width = 60;
menuBtn.clProSettings.BackgroundColor = clAlphaColor.clHexToColor('#A5C9CA');
menuBtn.clProSettings.FontColor = clAlphaColor.clHexToColor('#2E4F4F');
menuBtn.clProSettings.TextSettings.Font.Style = [fsBold];
menuBtn.clProSettings.IsRound = True;
menuBtn.clProSettings.RoundHeight = 10;
menuBtn.clProSettings.RoundWidth = 10;
menuBtn.clProSettings.BorderColor = clAlphaColor.clHexToColor('#C7D8D8');
menuBtn.clProSettings.BorderWidth = 2;
menuBtn.SetclProSettings(menuBtn.clProSettings);
MyForm.AddNewEvent(menuBtn,tbeOnClick,'showMenuFrame');
ShowBtn= MyForm.AddNewProButton(TstSideMenu.VertScrollBox,'ShowBtn','Close');
ShowBtn.Align = AlTop;
ShowBtn.Height = 40;
ShowBtn.Margins.Top = 10;
ShowBtn.clProSettings.FontHorzAlign = palCenter;
ShowBtn.clProSettings.BackgroundColor = clAlphaColor.clHexToColor('#E7D4B5');
ShowBtn.clProSettings.BorderColor = clAlphaColor.clHexToColor('#FFFFFF');
ShowBtn.clProSettings.TextSettings.Font.Style = [fsBold];
ShowBtn.clProSettings.IsRound = True;
ShowBtn.clProSettings.RoundHeight = 10;
ShowBtn.clProSettings.RoundWidth = 10;
ShowBtn.clProSettings.BorderWidth = 2;
ShowBtn.SetclProSettings(ShowBtn.clProSettings);
MyForm.AddNewEvent(ShowBtn,tbeOnClick,'showShowBtn');
MenuItem1 = MyForm.AddNewProButton(TstSideMenu.VertScrollBox,'MenuItem1','Main Page');
MenuItem1.Align = AlTop;
MenuItem1.Height = 40;
MenuItem1.Margins.Top = 15;
MenuItem1.clProSettings.BackgroundColor = clAlphaColor.clHexToColor('#D2E9E9');
MenuItem1.clProSettings.FontColor = clAlphaColor.clHexToColor('#2E4F4F');
MenuItem1.clProSettings.IsRound = True;
MenuItem1.clProSettings.RoundHeight = 8;
MenuItem1.clProSettings.RoundWidth = 8;
MenuItem1.clProSettings.BorderColor = clAlphaColor.clHexToColor('#C7D8D8');
MenuItem1.SetclProSettings(MenuItem1.clProSettings);
MenuItem2 = MyForm.AddNewProButton(TstSideMenu.VertScrollBox,'MenuItem2','Settings');
MenuItem2.Align = AlTop;
MenuItem2.Height = 40;
MenuItem2.Margins.Top = 10;
MenuItem2.clProSettings.BackgroundColor = clAlphaColor.clHexToColor('#F6EACB');
MenuItem2.clProSettings.FontColor = clAlphaColor.clHexToColor('#2E4F4F');
MenuItem2.clProSettings.IsRound = True;
MenuItem2.clProSettings.RoundHeight = 8;
MenuItem2.clProSettings.RoundWidth = 8;
MenuItem2.clProSettings.BorderColor = clAlphaColor.clHexToColor('#EAD7BB');
MenuItem2.SetclProSettings(MenuItem2.clProSettings);
MyForm.Run;
}

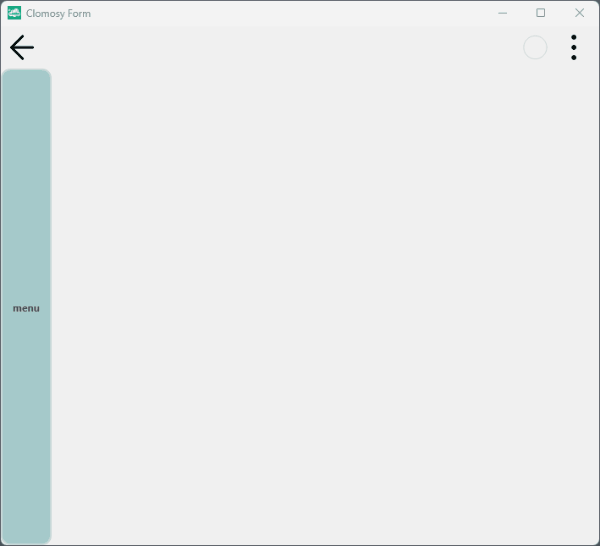

Output
