function AddNewVertScrollBox(AComponent: TCLComponent; xName: string): TclVertScrollBox;
AComponent : Specifies the parent of the object to be defined.
xName : The name of the defined vertscrollbox should be written.
AddNewVertScrollBox (TClVertScrollBox) create scrolling areas within a form. Applications often need to display more information than will fit in a particular area. Some controls, such as list boxes, notes, and forms, can automatically scroll down their content.
| Feature | Use of | Definition |
|---|---|---|
| TclVertScrollBox | VertScrollBox1: TclVertScrollBox; | A variable belonging to the TclVertScrollBox class is created. |
| AddNewVertScrollBox | VertScrollBox1 = Form1.AddNewVertScrollBox(Form1,'VertScrollBox1'); | A new TclVertScrollBox is added to the form. |
| ScrollBy(DeltaX,DeltaY: Integer); | VertScrollBox1.ScrollBy(0,-100); | To scroll the contents within the control, call ScrollBy. The DeltaX parameter is the change in pixels along the X-axis. |
| ScrollTo(X,Y: Integer); | VertScrollBox1.ScrollTo(0,-100); | To scroll the contents within the control, call ScrollTo. The X parameter is the change in pixels along the X-axis. |
| Width | VertScrollBox1.Width = 150; | Allows adjusting the width of the scrollBox. |
| Height | VertScrollBox1.Height = 50; | Allows adjusting the height of the scrollBox. |
| Align | VertScrollBox1.Align = alTop; | With the Align parameter, you can specify where you want our component to be aligned in the form. This parameter has multiple positioning properties. See the page to learn about these features. |
| Margins | VertScrollBox1.Margins.Left = 50; // Right, Top, Bottom | With the Margins parameter, you can give margins at any scale from the right, left, bottom, top. |
Example
In the example, a menu list has been created. The menu list includes headings such as vegetables, fruits, beverages, and types of meat. To enable a scrollable structure, a TCLVertScrollBox was created, containing buttons. When clicked, the specific button that was clicked is identified.
var
Form1: TclStyleForm;
btnS : TclProButton;
vScroll:TCLVertScrollBox;
BtnCaptionArr,BtnNameArr,btnImgArr : array of String;
i : Integer;
void BtnOnClick;
var
clickedBtn:TClProButton;
{
clickedBtn = TClProButton(Form1.Clsender);
ShowMessage(clickedBtn.Caption);
ShowMessage(clickedBtn.Hint);
}
{
BtnNameArr = ['btnVegetables','btnFruits','btnBeverages','btnMeatTypes','btnCakes'];
BtnCaptionArr = ['Vegetables','Fruits','Beverages','Meat Types','Cakes'];
btnImgArr = ['https://clomosy.com/demos/aubergine.png',
'https://clomosy.com/demos/watermelon.png',
'https://clomosy.com/demos/fruitJuice.png',
'https://clomosy.com/demos/meat.png',
'https://clomosy.com/demos/cake.png'];
Form1 = TclStyleForm.Create(Self);
Form1.SetFormColor('#ffffff','', clGNone);
Form1.clSetCaption('Menu List');
vScroll = Form1.AddNewVertScrollBox(Form1,'ScrollBoxY');
vScroll.Align = alMostTop;
vScroll.Height = Form1.clheight-70;
for (i = 0 to 4)
{
btnS = Form1.AddNewProButton(vScroll,BtnNameArr[i],BtnCaptionArr[i]);
btnS.Align = AlTop;
btnS.Height = 150;
btnS.Margins.Bottom = 5;
btnS.clProSettings.IsFill = True;
btnS.clProSettings.FontSize = 14;
btnS.clProSettings.FontColor = clAlphaColor.clHexToColor('#000000');
btnS.clProSettings.TextSettings.Font.Style = [fsBold,fsItalic];
btnS.clProSettings.BackgroundColor = clAlphaColor.clHexToColor('#4287f5');
btnS.clProSettings.FontVertAlign = palLeading;
btnS.clProSettings.FontHorzAlign = palcenter;
btnS.clProSettings.PictureSource =btnImgArr[i];
btnS.clProSettings.PictureAutoFit = True;
btnS.SetclProSettings(btnS.clProSettings);
btnS.Hint = BtnNameArr[i];
Form1.AddNewEvent(btnS,tbeOnClick,'BtnOnClick');
}
Form1.Run;
}

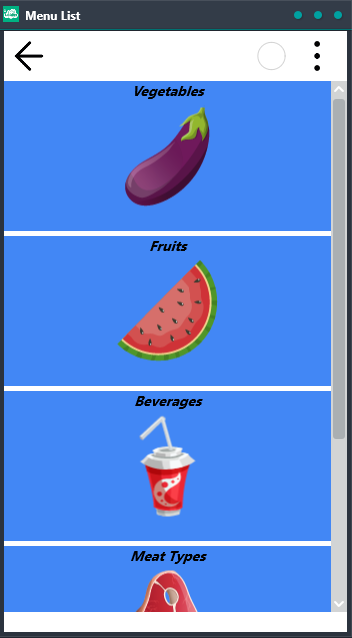

Output:
